PAKE Filter

A.The characteristics of the product

I-DEAL Chase Volume filter, installed in PAKE 40 inch filter I pc.

1, I-DEAL Chase volume filter cylinder using FRP winding process, corrosion resistance, high pressure resistance, no leakage.

2, I-DEAL Chase Volume filter Internal structure is novel and reasonable, the lower end is sealed support, and there are installation guidance, over

   The bottom of the filter has a filter positioning block, the top also has a fixed lock block, the installation of the filter cartridge only need to rotate 60 degrees can be fixed filter.

3, I-DEAL Chase volume filter components are FRP molded, resistant to high pressure, corrosion resistance, no leakage.

4, easy to install, I-DEAL Chase Volume filter using manual Clamp type Open, in the installation of filter cartridges and replacement filter cartridges

   Can be operated without any tools.

5, I-DEAL Chase volume filter surface using laminating process, elegant appearance, process environmental protection, color adjustable.

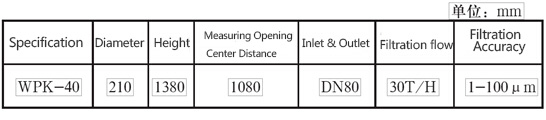

B. Product selection

C.Working Theory

Large flow PALL filter is also known as precision filter, a pressure filter device, the use of folding molding filter material, under the action of pressure, so that the original liquid through the filter material, filter slag left on the filter, filter through the filtration material outflow, so as to achieve the purpose of filtration. Filtration aperture is also different due to the difference of filter material. Precision filtration is a kind of filtration between sand filtration (coarse filtration) and ultrafiltration, and the filtration aperture is generally in the 0.5~100μm range. The same form of filter material, according to the size of the outer type can be divided into different specifications. The filter material formed by folding process has a large flux and a maximum operating temperature of 60 ℃. Precision filtration removes suspended matter, certain colloidal substances and small particulate matter from the water.

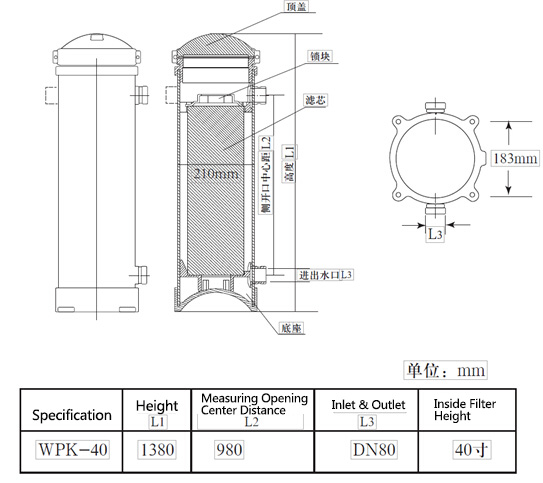

D. Mounting Dimensions

E.Precautions

1, Filter installed in place, fixed lock block rotation 60 degrees.

2, Working pressure can not exceed the rated range.

3, Open the exhaust valve before the start, air drain after closing the exhaust valve.

4, When the pressure difference exceeds the rated range, timely replacement of the filter material.
